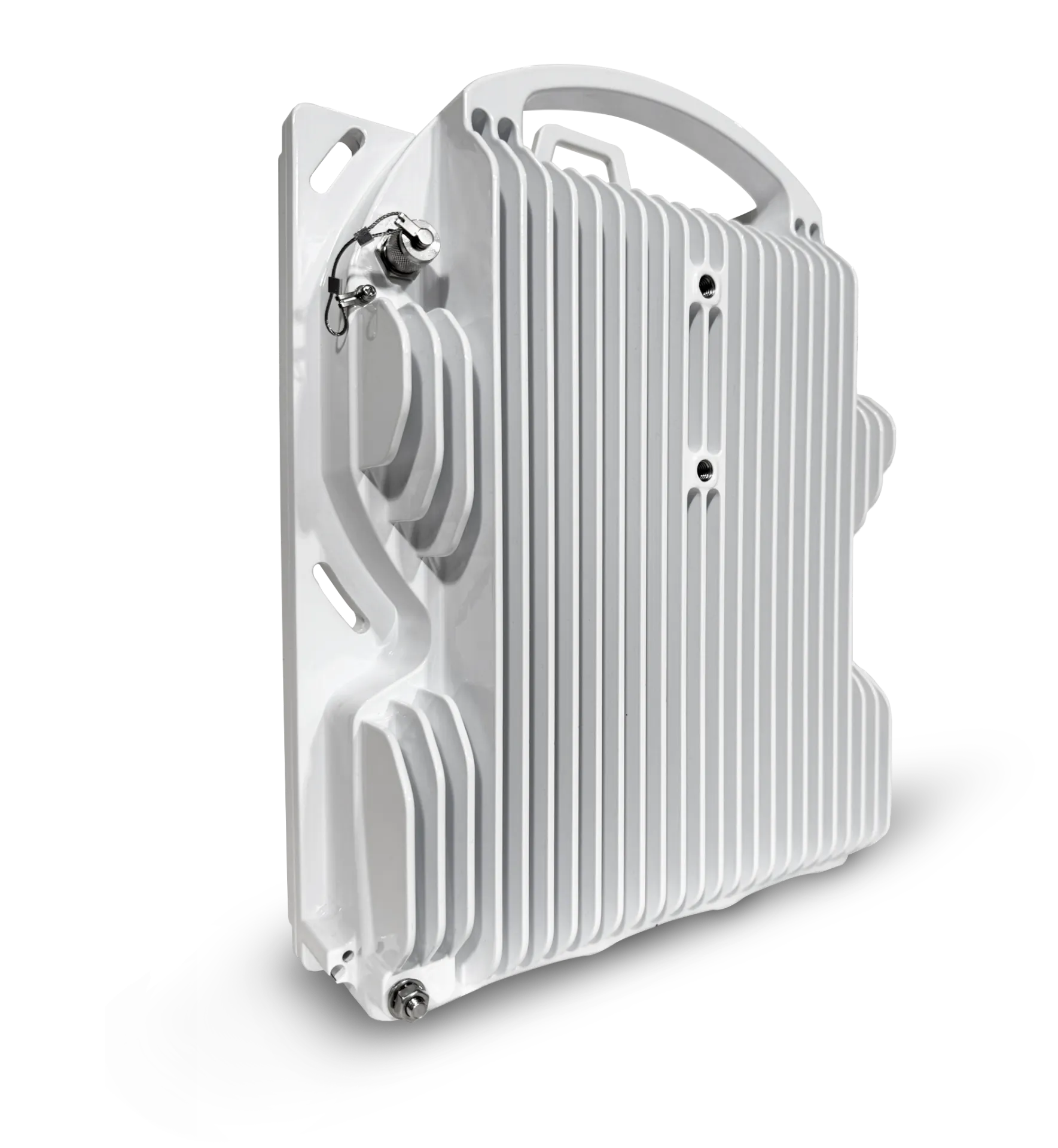

The IP-100E provides an ideal solution for anyone looking for future-proof, high-capacity links. The IP-100E can provide the highest capacity available today, or as a future-proof ‘1-click-double-capacity’ option, allowing for future remote capacity increases without the need to install a new radio.
The IP-100E also allows for longer links by splitting the capacity over the two radio carriers, which will increase the system gain and allow for longer links.
The IP-100E includes an optional built-in OMT or splitter for maximum deployment flexibility, allowing you to use the IP-100E as two carriers in any desired configuration.
Key features include innovative adaptive coding modulation and bandwidth (ACMB) technology, enabling hitless transmission through dynamic modulation and bandwidth adjustment for challenging conditions.
With dual 25 GbE interfaces, the IP-100E provides future-proof Layer 2 connectivity. It serves diverse applications from macro site backhaul to small cell connectivity and building-to-building links, making it ideal for mobile carriers, ISPs, and enterprise networks.
Radio
- Maximum capacity: 25 Gbps per unit
- Frequency range: 71-86 GHz
- Channel bandwidth: 250-2250 MHz
- ACM/ACMB: 11 steps, ½ BPSK to 1024 QAM
- Transmit power: 24 dBm
- Integrated OMT/Splitter
User Interface
- 2× 1/10/25 GbE ports (SFP28)
- 1× 1/10 GbE port (SFP+)
- 1× 100 Mbps Ethernet (management/protection/user) networking
Networking
- Layer-1 carrier aggregation with XPIC and multiband, supporting up to 40 Gbps
- Carrier Ethernet 2.0 compliant switching
- Carrier-grade resiliency (G.8032, MSTP)
- SyncE and IEEE 1588 synchronization
- ITU-T Y.1731 service management
- SDN support
- Layer 3 capability (via IP-50FX)
Security
- Optional AES encryption*
- Secure protocols (HTTPS, TLS, SSH, SNMPv3)
- Hardened architecture and software
- Advanced authentication
